How Effective Are Sound Barrier Walls?

Jun. 26. 2023

Sound barrier walls, also known as noise barrier walls or soundproof walls, are structures designed to reduce the transmission of sound from one area to another. They are commonly used in various settings, including highways, industrial areas, residential neighborhoods, and commercial buildings. The effectiveness of sound barrier walls depends on several factors, including design, construction materials, height, distance from the noise source, and the frequency and intensity of the sound being addressed. Here is an overview of the effectiveness of sound barrier walls:


Noise Reduction:

  • Sound Reflection: Sound barrier walls work by reflecting and absorbing sound waves. When sound waves encounter a solid surface, such as the barrier wall, a portion of the sound energy is reflected back towards the source, reducing the amount of sound that propagates to the other side.

  • Sound Absorption: Sound barrier walls are often designed with materials that absorb sound energy. These materials, such as porous concrete, fiberglass, or specialized acoustic panels, help dissipate and absorb sound waves, reducing their intensity and preventing sound from bouncing back into the environment.

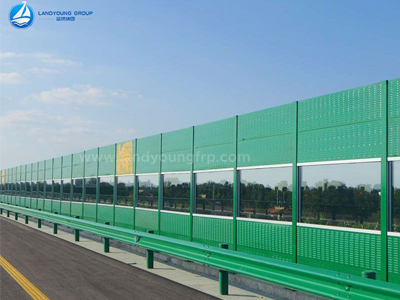

    FRP Sound Barrier Wall*

FRP Sound Barrier Wall

Sound Attenuation:

  • Sound Transmission Class (STC): Sound barrier walls are rated using the Sound Transmission Class (STC) system, which measures their ability to attenuate sound. Higher STC ratings indicate better sound insulation. Effective sound barrier walls typically have STC ratings ranging from 25 to 50 or higher, depending on the desired level of noise reduction.

  • Frequency-Specific Attenuation: Sound barrier walls can vary in their effectiveness at different frequencies. While some walls provide consistent attenuation across a wide range of frequencies, others may be more effective at certain frequencies. The design and materials of the sound barrier wall play a crucial role in determining its frequency-specific performance.

Distance from the Noise Source:

  • Sound Intensity Decay: The effectiveness of sound barrier walls diminishes with distance from the noise source. As sound waves propagate, their intensity decreases, and the noise reduction provided by the barrier wall becomes less significant. To maximize the effectiveness of sound barrier walls, they should be located as close as possible to the noise source.

  • Line-of-Sight Considerations: Sound barrier walls are most effective when they form a continuous barrier between the noise source and the receiver. Any breaks or openings in the wall can allow sound to bypass the barrier and reduce its overall effectiveness.

FRP Sound Barrier Wall

 FRP Sound Barrier Wall

Height and Design:

  • Barrier Wall Height: The height of the sound barrier wall is a crucial factor in its effectiveness. Taller walls can provide greater noise reduction, as they create a larger obstacle for sound waves to overcome. Higher walls are particularly beneficial for reducing noise from elevated sources, such as highways or railways.

  • Barrier Wall Design: The design of sound barrier walls can influence their effectiveness. Factors such as the angle of the wall, its shape, and surface treatments can impact the reflection, absorption, and deflection of sound waves. Specialized designs, such as curved or staggered walls, can enhance sound diffraction and further reduce noise levels.

Environmental Factors:

  • Ambient Noise Levels: The effectiveness of sound barrier walls is more noticeable in areas with low ambient noise levels. In high-noise environments, such as heavily trafficked areas, industrial zones, or urban centers, the impact of the barrier may be relatively less noticeable. However, even in these environments, sound barrier walls can still provide significant noise reduction and contribute to improved acoustic conditions.

  • Wind Effects: Wind can affect the performance of sound barrier walls. Strong winds can increase noise levels by carrying sound over or around the wall. Proper design considerations, such as aerodynamic shaping or the inclusion of deflectors, can help mitigate the impact of wind on the barrier's effectiveness.

For more information, please contact us. We will provide professional answers.
