FRP Water Treatment Tank

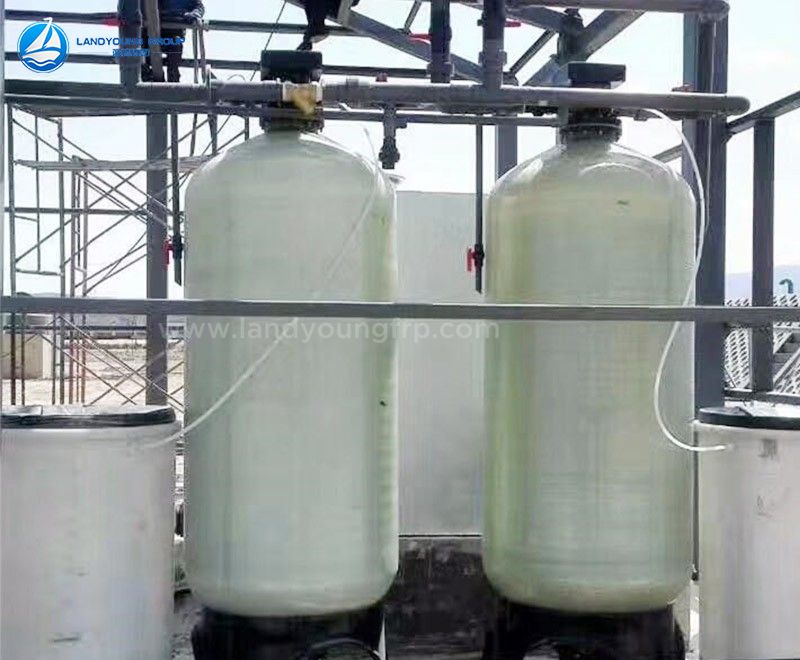

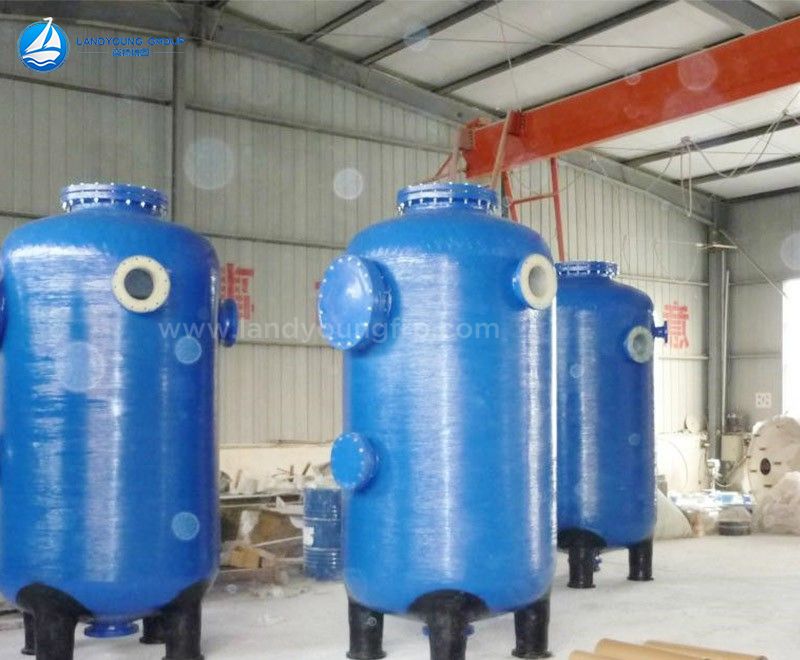

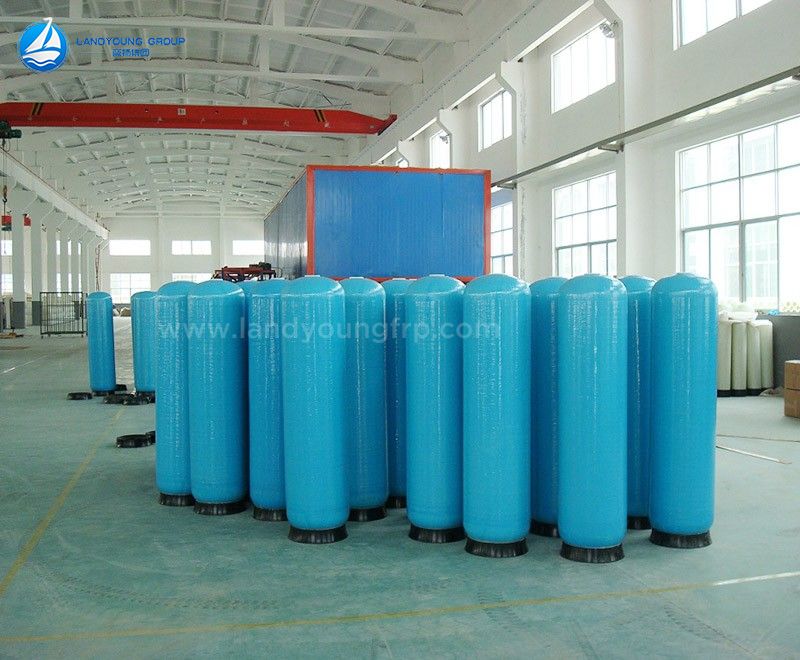

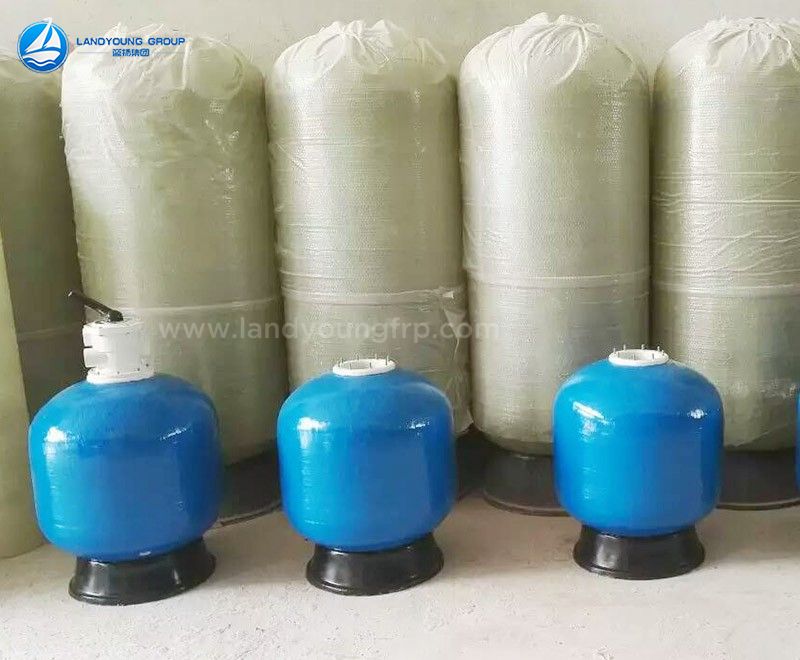

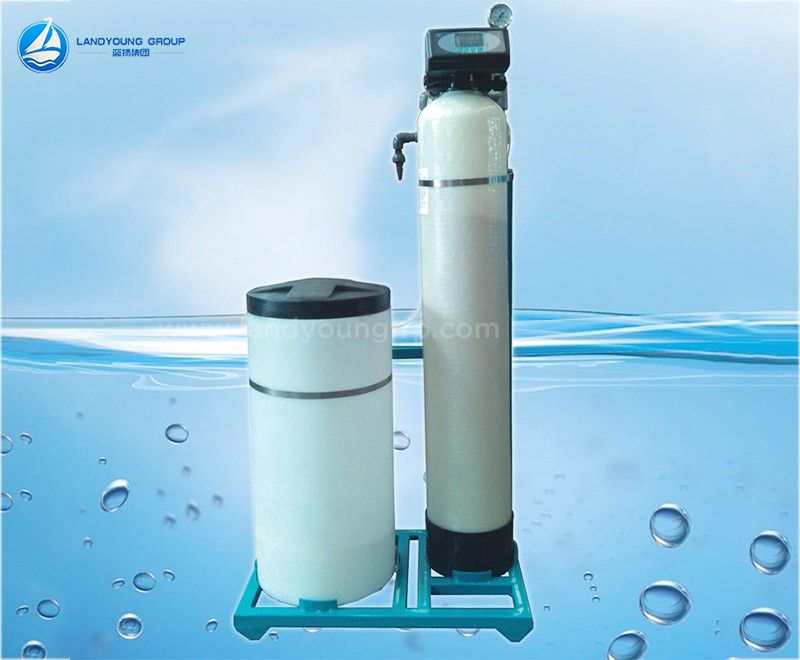

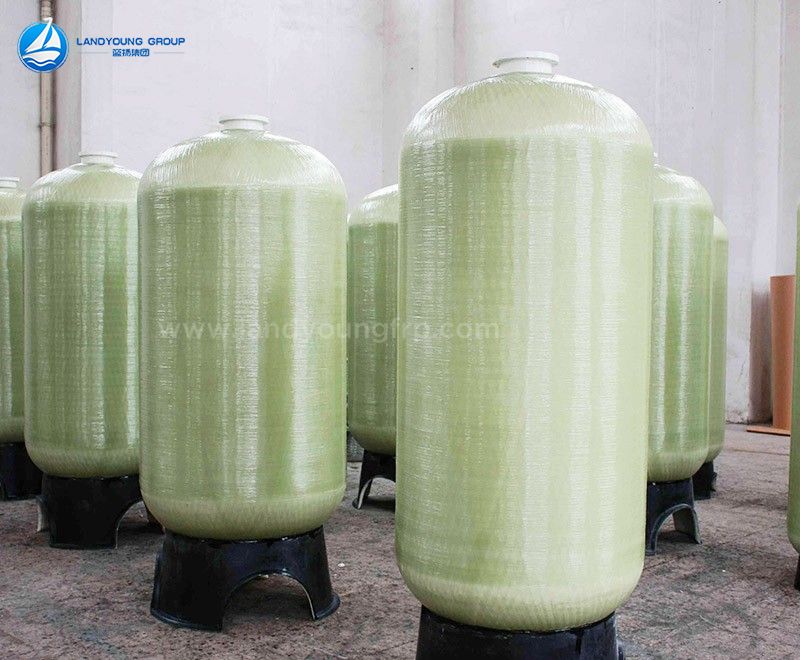

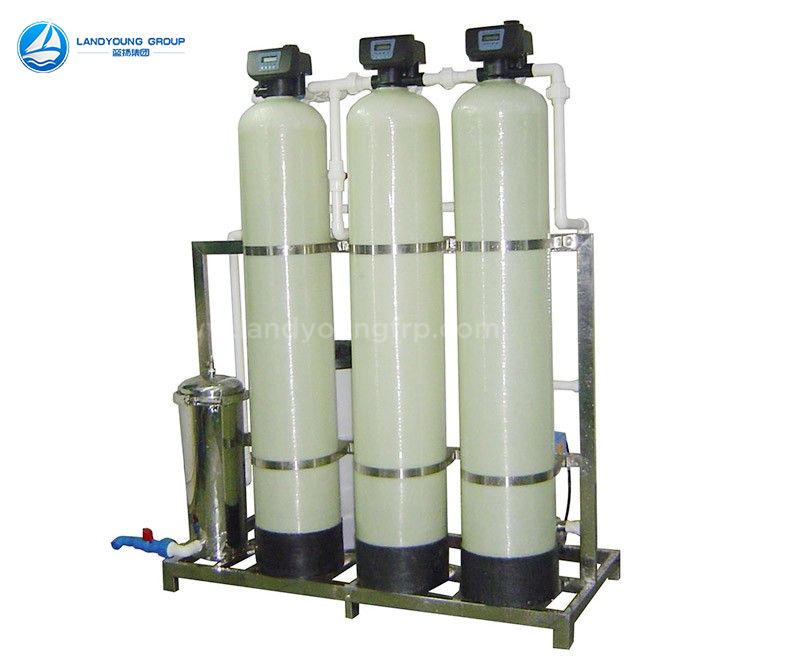

LANDYOUNG FRP water treatment tank is composed of a PE inner liner and a glass fiber wound outer layer. The inside can be filled with different fillers. It can be used as a filter tank or a softening tank.

Share
DESCRIPTIONS

LANDYOUNG FRP water treatment tank is composed of a PE inner liner and a glass fiber wound outer layer. The inside can be filled with different fillers. It can be used as a filter tank or a softening tank.


Application

FRP Double wall fuel storage tank is used in chemical industry, printing and dyeing, printing ink, gas station etc.

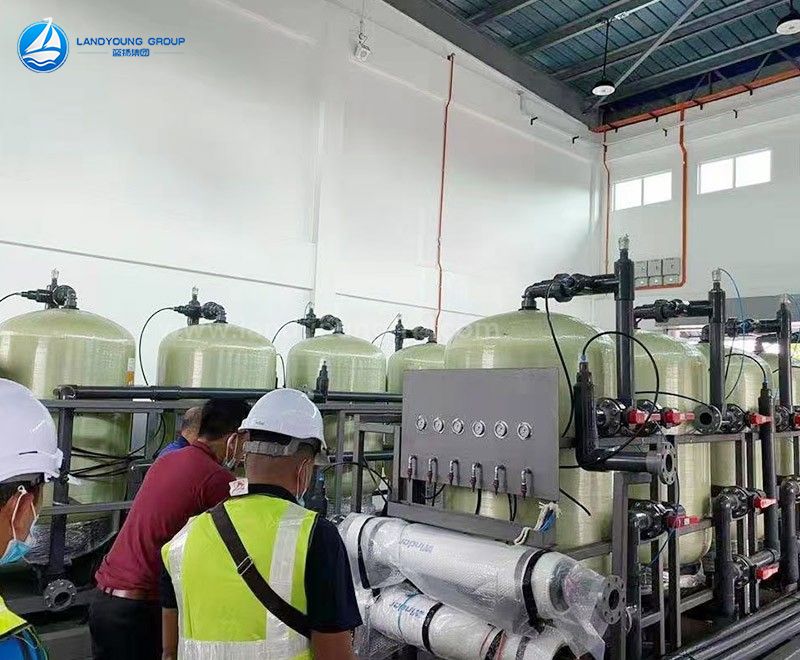

•Energy and power water

Water in the power industry, thermal and thermal power plants, mining enterprises, medium and low pressure boiler power, and water supply systems.

Main uses: circulating water for power plants, factories, high and low pressure boilers, air conditioners, cold storage, etc.


•Chemical industry water

Chemical reaction cooling, chemical agent, fertilizer, fine chemical, cosmetics manufacturing process water pretreatment system.

Main uses: water for textile printing and dyeing, papermaking, pure water for chemical reagent production. Pure water for skin care products, pure water for shampoo production, and pure water for hair dye production.


•Industrial product coating water

Surface coating, cleaning, coating glass and battery water system for automobiles, household appliances, and building materials.

Main application: Pretreatment of high-purity water for electroplating and glass coating.


•Beverage industry water

Pure drinking water, natural water, beverages, low-alcohol blending water, pure draft beer filtration, etc.

Main use: Purified water, mineral water production, pure water for food and beverage production, raw water filtration in hotels, living quarters, etc.


Advantages and features

• Corrosion resistance, no leakage

• High strength and light weight

• Convenient transportation and installation

• Beautiful appearance


• Quality assurance

Burst test with 4 times of its design pressure.

100,000 times fatigue test.


• Material

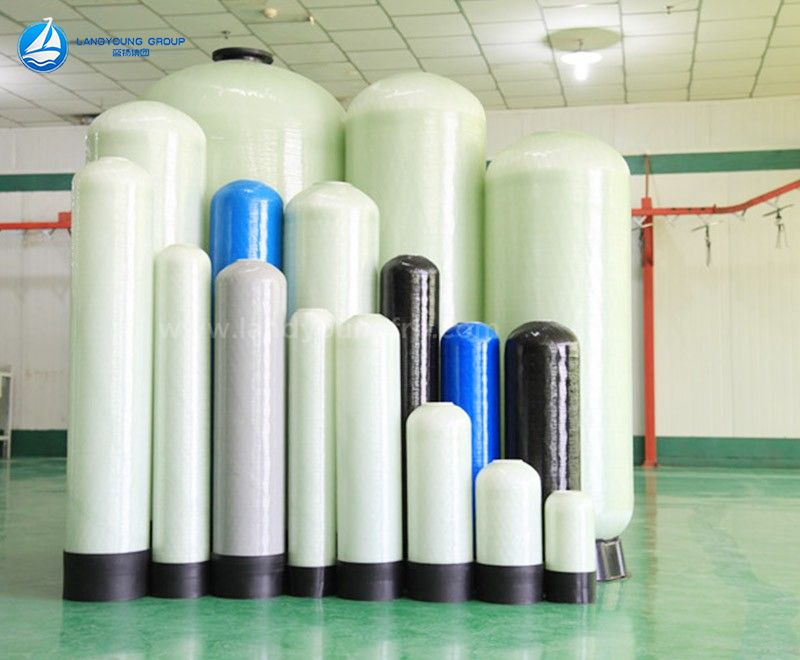

Fiberglass: 8" – 16" tanks use 600 tex fiberglass, with strong better pressure coefficient and safety factor.

Epoxy: small tanks use NanYa 127 – Chinese largest company, large than 3672 tanks use American DOW Epoxy 383.

Harder Germany BYK 502.

Base: Reinforced PP for small tank base, FRP material for large tank.

Opening: 2.5"and 4" engineering plastic threaded tank opening, 6" aluminium alloy flange opening.

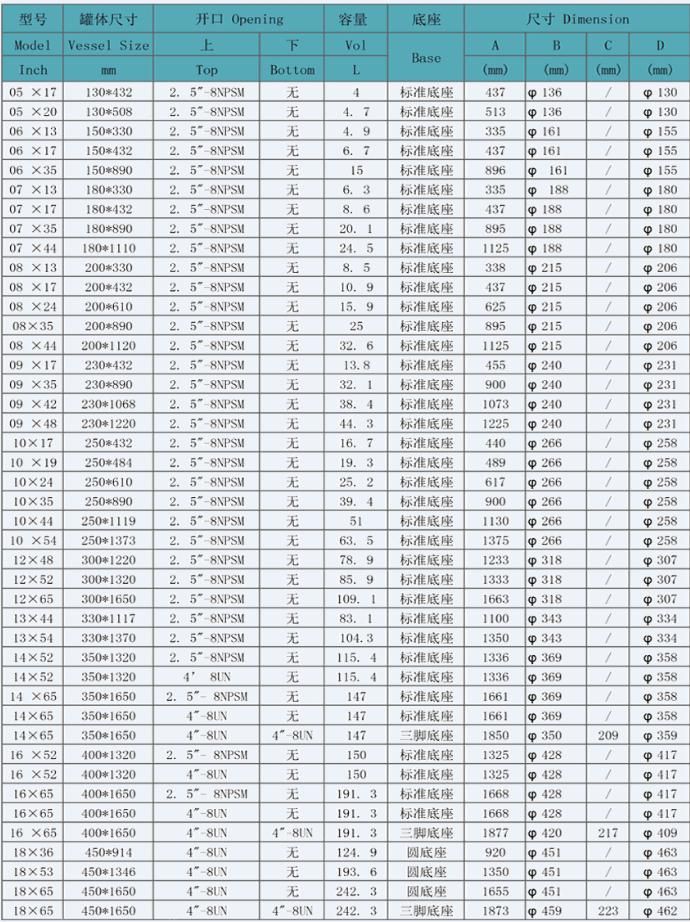

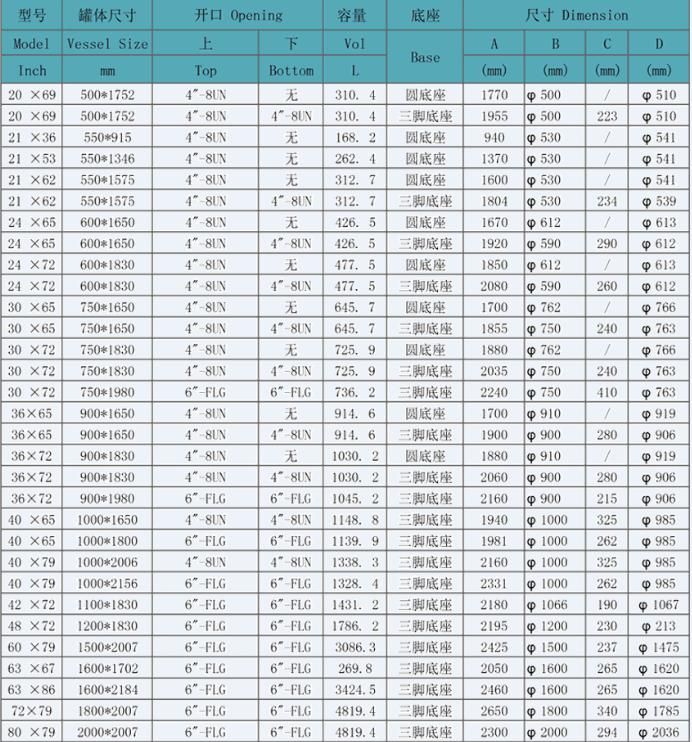

Specification

• Design pressure 150 psi

• Food grade HDPE inner liner.

• Fatigue test: 100000 times.

• Burst test: 4 times of its design pressure.

• Model: 813-8079.

• Working temperature: 1 °C - 49 °C (34°F - 120°F).

• Warranty:two years warranty for housing body against industry defects; one year warranty for spare parts.
